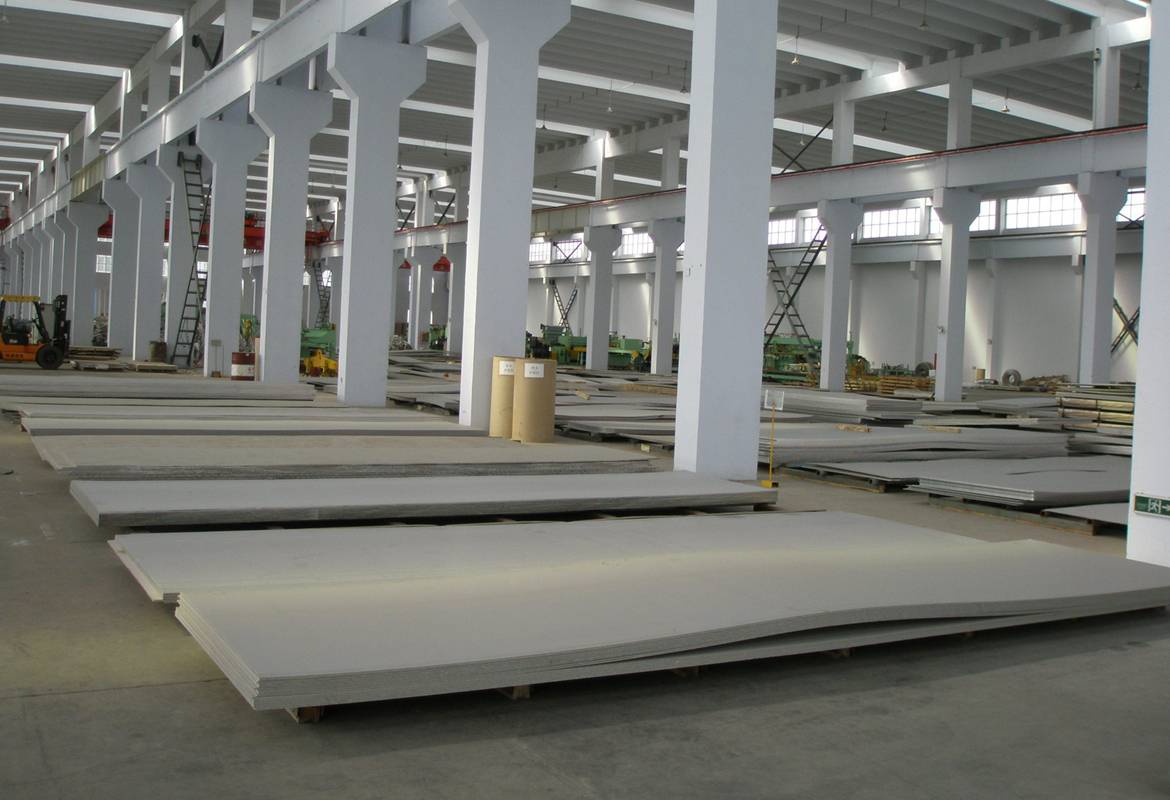

Monel 400 Sheets are a widely used nickel-copper alloy product, prized for their superior corrosion resistance, especially in marine and chemical environments. Known for their strength and durability, these sheets are ideal for demanding fabrication projects where traditional stainless steel might fail. However, working with Monel 400 Sheets requires specialised knowledge due to their unique material characteristics. This blog explores expert tips for fabricating Monel 400 Sheets, helping engineers, metalworkers, and fabricators achieve high-quality, long-lasting results.
Understanding Monel 400 Sheets
Before diving into fabrication techniques, it’s important to understand what makes Monel 400 special. It is an alloy composed primarily of nickel (around 63%) and copper (about 30%), with small amounts of iron, manganese, and other elements. Monel 400 offers:
- Excellent resistance to seawater, acids (like hydrofluoric and sulfuric acid), and alkalis.
- High strength and toughness across a wide temperature range.
- Non-magnetic properties, make it ideal for electrical and electronic applications.
These attributes make Monel 400 Sheets perfect for shipbuilding, chemical processing, power generation, and aerospace industries.
1. Cutting Monel 400 Sheets
Monel 400 is a tough material to machine or cut, mainly due to its high strength and tendency to harden rapidly.
Tips:
- Use slow speeds and heavy feeds. This reduces the risk of work-hardening during cutting.
- Prefer carbide or high-speed steel tools. These tools can withstand the heat generated and maintain sharpness.
- Water jet or plasma cutting methods are preferred for precision and minimal heat-affected zones.
- Avoid prolonged friction, as it may cause overheating and material distortion.
2. Welding Monel 400 Sheets
Welding Monel 400 requires careful technique, as improper methods can result in cracking or porosity.
Recommended welding methods:
- Gas Tungsten Arc Welding (GTAW/TIG) is ideal for precision welding.
- Gas Metal Arc Welding (GMAW/MIG) for larger structural work.
Tips:
- Use filler metal of similar composition (like Monel 60).
- Clean the surface thoroughly before welding to avoid contamination.
- Preheating is not required, but maintaining a clean, dry environment is crucial.
- Post-weld heat treatment is generally not needed unless the component will face extreme conditions.
3. Bending and Forming Monel 400 Sheets
Forming Monel 400 Sheets requires more force than forming stainless steel or carbon steel sheets due to their work-hardening nature.
Tips:
- Annealing the sheets before forming helps reduce hardness and improve ductility.
- Use powerful equipment capable of exerting the necessary forming forces.
- Avoid repeated bending, as it can lead to cracking due to work hardening.
If multiple operations are involved, intermediate annealing may be necessary to restore ductility.
4. Annealing Process
Annealing is a critical step when working with Monel 400 Sheets to reduce internal stress and improve flexibility.
Tips:
- Heat the sheets to 1300°F to 1600°F (700°C to 870°C) in a controlled environment.
- After heating, rapid quenching in water is recommended to retain corrosion resistance.
- Avoid partial annealing as it might result in uneven mechanical properties.
5. Machining Considerations
Machining Monel 400 Sheets is challenging because the alloy tends to harden under cutting tools. The result? Increased tool wear and reduced machining speeds.
Tips:
- Use sharp, rigid tools with proper cutting angles.
- Minimize tool vibration and chatter.
- Apply cutting lubricants like sulfur-based oils to reduce heat buildup.
- Always remove the hardened surface layer before final machining for a smooth finish.
6. Fastening Techniques
Due to the alloy’s strength, Monel 400 Sheets can be drilled and tapped for bolted joints, but you must be cautious.
Tips:
- Use cobalt-alloy drills and apply consistent pressure during drilling.
- Threads should be formed with care to avoid galling.
- Use anti-seize compounds when assembling with other metals to prevent corrosion or seizure.
7. Surface Finishing
Monel 400 has a naturally attractive, silvery appearance. However, some applications demand enhanced aesthetics or smoothness.
Tips:
- For a polished finish, use fine-grit sanding followed by buffing.
- Avoid acidic cleaners that may interact with nickel.
- Surface passivation can enhance corrosion resistance, especially after fabrication.
Applications of Fabricated Monel 400 Sheets
Once properly fabricated, Monel 400 Sheets are suited for a variety of industrial applications, including:
- Heat exchangers and condensers
- Marine components, such as propeller shafts, pumps, and valves
- Chemical process vessels and pipelines
- Aerospace structural parts
- Food and beverage handling equipment
The combination of high strength, corrosion resistance, and reliability makes Monel 400 ideal for these high-demand environments.
Conclusion
Fabricating Monel 400 Sheets requires expertise, the right tools, and a deep understanding of the material’s unique properties. From precise cutting and forming to careful welding and finishing, each step plays a vital role in ensuring the sheet performs optimally in service. Whether you’re a fabricator, engineer, or project manager, following these expert tips will help you unlock the full potential of Monel 400 Sheets for your industrial applications.
